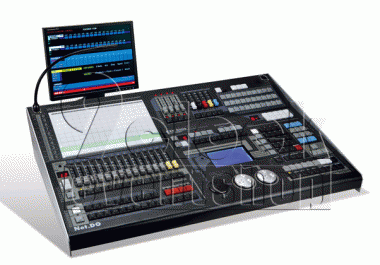

EXP5000 MOVING LIGHT CONTROLLER
l 2048 DMX channels, DMX512/1990 standard, Output port with optical isolated.
l Up to 240 intelligent Fixtures or 240 Dimmer may be connected.
l Up to 42 channels each Fixture. Fixture Library mode, “pearl” Fixture Library compatible.
l 600 Playback program, 200 Group, 210 Preset, 100 Snapshot.
l With a playback of the list display, Users can view and write playback list.
l 100 Scene-snapshots can be directly used keys running (flash or latch).
l With attribute fader of fixture (including dimmer, shutter, magenta, yellow and cyan). Used to quickly control the LED fixture.
l Up to 180 SHAPE generators. SHAPE is provided to control such effects as circles, lines and dimmer effect, etc.
l Chase trigger mode selectable: Auto1, Auto2, Music synchronously and MIDI.
l USB port is provided. USB-disk can record the data of controller, Controller can be upgraded through the USB port.
l 1 VGA port, user can connect it to the colorful CRT or LCD displays (OPTIONAL).
l LCD display with backlight.
l 12V accessory operate light (OPTIONAL).
l Power supply: AC 110-240V / 50-60Hz
l Size: 820mm x 540mm x 175mm
