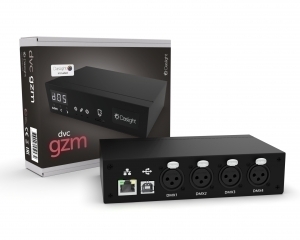

The DVC4 GZM has been designed for larger installations, clubs and applications
With the ability to output up to 3 DMX universes (1536 channels) and trigger up to 5 scenes simultaneously,
this is one of the most powerful stand alone DMX units available on the market today.
The most powerful Daslight controller features :
- 4 x 512 Channels (2048) Configurable Input / Output in PC mode, 1536 DMX output channels in stand-alone
mode.
- 4x 3pin XLR female socket
- Plug and play USB 2.0 interface with power via the PC's USB socket or via a 5-12v USB mains adapter
- HE10 connector: Trigger scenes through dry contact ports
(allows up to 8 trigger actions or 255 if combined in binary)
- Compatible with any type of DMX 512 fixture
- Internal miniSD memory allowing for the storage of an almost unlimited amount of scenes
- Areas: 5 scenes can play simultaneously in stand-alone. Each area can contain up to 99 scenes
- 2 buttons to scroll between scenes and 1 button to select the area
- Led display allowing you ton monitor the selected scene and area
|
USB
|
type B
|
|
XLR
|
4 x 3-pin
|
|
Ethernet
|
RJ45
|
|
Housing
|
Metal
|
|
Buttons
|
3
|
|
Memory
|
SD card
|
|
Live Channels by default (XLR)
|
1536
|
|
Live Channels max (XLR)
|
2048
|
|
Live Art-Net universes
|
1
|
|
Live Art-Net universes max
|
30
|
|
DMX IN mode
|
√
|
|
Daslight 4
|
Full
|
|
Daslight 5
|
Full
|
|
SA Channels by default
|
512
|
|
SA Channels max
|
2048
|
|
SD card memory
|
√
|
|
Zones
|
5
|
|
Scenes in total
|
99
|
|
Direct access keys
|
|
|
Ports trigerring
|
|
|
App/Api trigerring
|
√
|
|
Date & Time
|
√
|
|
Stand alone, buiding with
|
Daslight 4/5
|
