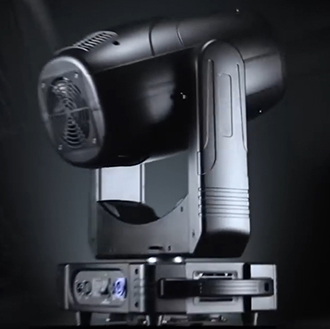

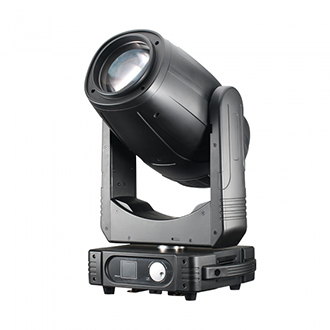

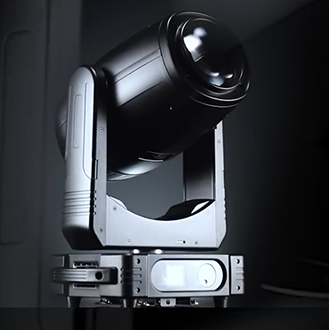

EXP372 3 in 1 무빙 헤드 라이트에는 고효율 350W LED 백색 엔진이 장착되어 있습니다. 350W에 불과해도 20-25m 스팟 쇼에 충분히 밝습니다. Utral 효과 스팟, 40도 줌. 2프리즘, 3면프리즘, 8면프리즘으로 프리즘 효과가 훨씬 더 선명합니다. 3 in 1 라이트에서 일반적으로 사용 가능한 각도인 6°-7°와 달리 조명 각도는 3.5° 미만입니다. 빔 강도/감각이 강해집니다.
Channel Mode:16/24CH(CMY VERSION is 21/25CH)
Light Source
Light Source: LED SOURCE 350W
Life time:20000Hours
Optical System
Beam angel : 3～40°;
Dimmer : 0-100% l inear adjustment ;
Gobo Wheels
Fixed gobo : 10 gobo + white
Rotation gobo: 9 gobo+ white,effect;
Gobo size diameter:15.9mm ,image diameter:13mm;
Color Wheels
9 colors+white
( CMY FUNCTION IS OPTIONAL,DEFAULT IS WITH STATIC COLOR WHEEL)
Prism System
8 facet prism+ 3facet prism,fixed frost function,
Control & screen
Display: 2.8 inch screen display, can reverse 180°;
USB:USB connector cn set DMX address without power switch on and upgrade the software.
PAN & TILT
Pan:540°;8 Bit/16 Bit
Tilt:270°;8 Bit/16 Bit
Electrical info
Input voltage range: AC 110-240V, 50/60Hz
Total Power:416W
Size & Weight
Carton size: 695*360*440mm;
N.W: 19 KG;
G.W: 22 KG kg(carton box).
Flycase G.W.: 73KG
Flycase: 860*470*810mm
Light Source
Lamp: 600W White LED Engine
Life time：20000 hours
Light Source Luminous Flux：30000
Optical System
Beam angel : 6～50°
Dimmer : 0-100% linear adjustment
Iris: Disphragm adjustable
Gobo Wheels
Fixed gobo : 8 gobo + white.
Rotation gobo: 6 gobo+ white,changeable
Color Wheels
5 fix colors+white+CRI+CMY+CTO.CT:2800-5600K
Prism System
Prism: 4 facet prism ,Frost function
Framing System
Cut: 4 plates.Aftercut,the pattern canrotation 180°
Position lock system: Magnetism positionlock system
Control & Screen
Display: 2.8 inch screen display, canreverse 180°
Connector can set dmx address with power and upgrade the software.
Electrical Info
Power: AC180-240V,50/60Hz
Total power: 700W
PAN & TILT
Pan : 540°, 8Bit/16Bit
Tilt : 270°, 8Bit/16Bit
Size & Weight
Product size: 410x310x740mm
Carton box: 860x490x510 mm
N.W: 32KG
