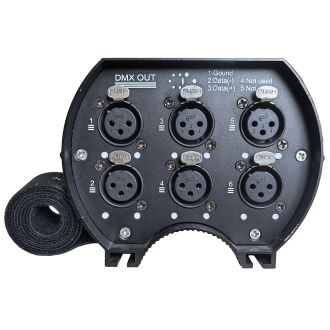

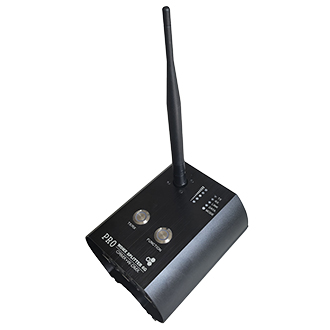

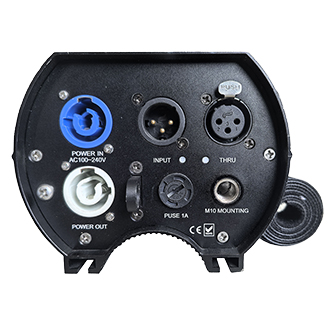

W-DMX 2.4GHz wireless DMX Transmitter and Receiver and 6port  Splitter

Completely new, compact and elegant housing



Swedish wireless 2.4G wireless DMX transmitter with the latest Nano PCB in DMX solutions



One-button setup, completely new, compact and elegant housing



AC100~240V input



Range (distance) : up to 500m, LoS, 3m over ground



Channels: 58



Frequency band (MHz/GHz): 2.4GHz



Transmitter power (mW) : 100mW



Receiver sensitivity (dBm):  98dBm



Latency in time (mS): <5mS



Antenna type: Detachable, RP-SMA



Antenna length (e.g. 1/4 wave, 1/2 wave, etc.) : Standard 2dBi antenna

Power Input : AC 100~230V 50/60Hz



Power consumption :  9W



Size : 135*122*97mm



Weight : 0.8Kgs
