DMX CONT ROL MODES

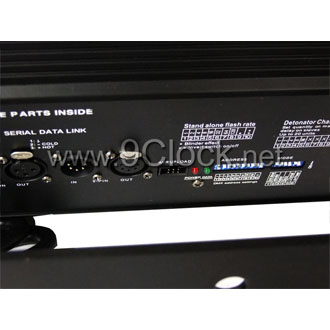

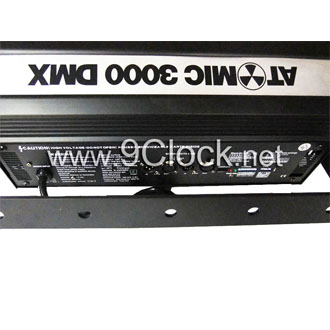

The DMX control options are selected on the Mode DIP switch.
1-channel DMX mode allows you to strobe from 0 flashes per second to the maximum flash rate and trigger the blinder effe ct from the controller. To select 1
2- channel DMX operation, set pin 5 of the Mode DIP
switch to on; set pins 1 to 4 to off.
3 - ch annel DMX mo de p r ov ide s cont r o l of f l ash inte nsity, fla s h dura tion, a nd fla s h ra te for more advanced control than 1-channel mode. To select 3- channel DMX operation, set pins 1 to 5 of the Mode DIP switch to off.
4-channel DMX mode provides six special effects in addition to flash intensity, duration, and rate control. To select this 4-channel DMX operation, set pins 1, 2, 3, and 5 to off; set pin 4 to on.
1-channel DMX
mode setting
2 3 4 51 6
3-channel DMX
mode setting
2 3 4 51 6
4-channel DMX
mode setting
